Compose is a tool for defining and running multi-container Docker applications. With Compose, you use a YAML file to configure your application’s services. Then, with a single command, you create and start all the services from your configuration. To learn more about all the features of Compose, see the list of features.
所有的环境都可以使用compose。
Compose works in all environments: production, staging, development, testing, as well as CI workflows. You can learn more about each case in Common Use Cases.
三步骤：
Using Compose is basically a three-step process:
Define your app’s environment with a
so it can be reproduced anywhere.
Dockerfile保证我们的项目再任何地方可以运行
Define the services that make up your app in
so they can be run together in an isolated environment.
services 什么是服务。
Run
and Compose starts and runs your entire app.
启动项目
作用：批量容器编排
我自己的理解

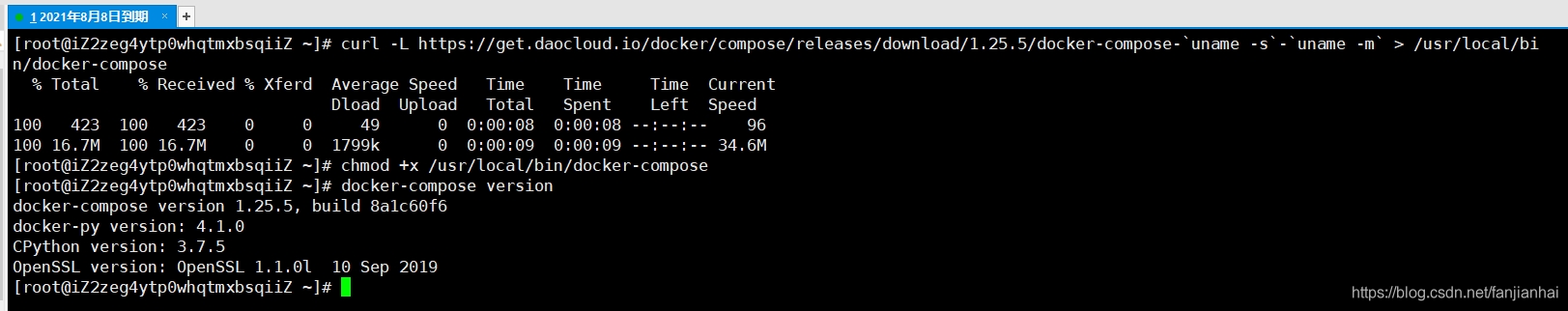

Compose是Docker官方的开源项目，需要安装！
Dockerfile让程序在任何地方运行。web服务、redis、mysql、nginx... 多个容器。 run

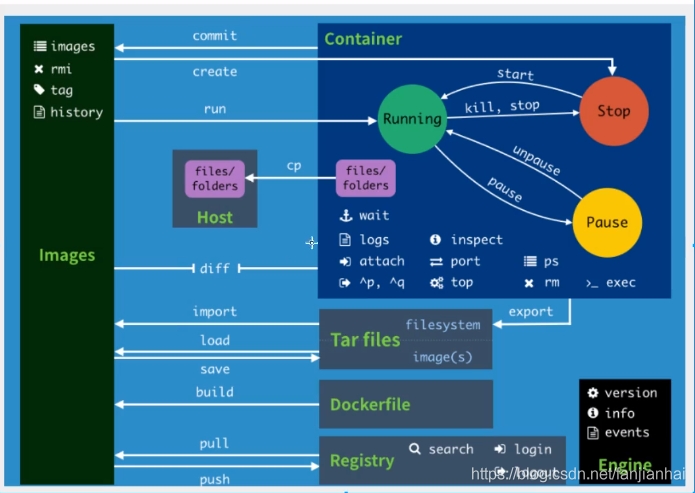

docker version # docker版本信息
docker info # 系统级别的信息，包括镜像和容器的数量
docker 命令 --help
[root@iZ2zeg4ytp0whqtmxbsqiiZ ~]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
hello-world latest bf756fb1ae65 7 months ago 13.3kB
# 解释
REPOSITORY # 镜像的仓库
TAG # 镜像的标签
IMAGE ID # 镜像的ID
CREATED # 镜像的创建时间
SIZE # 镜像的大小
# 可选项
--all , -a # 列出所有镜像
--quiet , -q # 只显示镜像的id
NAME DESCRIPTION STARS OFFICIAL AUTOMATED
mysql MySQL is a widely used, open-source relation… 9822 [OK]
mariadb MariaDB is a community-developed fork of MyS… 3586 [OK]
mysql/mysql-server Optimized MySQL Server Docker images. Create… 719 [OK]
# 可选项
--filter=STARS=3000 # 搜素出来的镜像就是STARS大于3000的
[root@iZ2zeg4ytp0whqtmxbsqiiZ ~]# docker search mysql --filter=STARS=3000
NAME DESCRIPTION STARS OFFICIAL AUTOMATED
mysql MySQL is a widely used, open-source relation… 9822 [OK]
mariadb MariaDB is a community-developed fork of MyS… 3586 [OK]
# 下载镜像，docker pull 镜像名[:tag]
[root@iZ2zeg4ytp0whqtmxbsqiiZ ~]# docker pull mysql
Using default tag: latest # 如果不写tag，默认就是latest
latest: Pulling from library/mysql

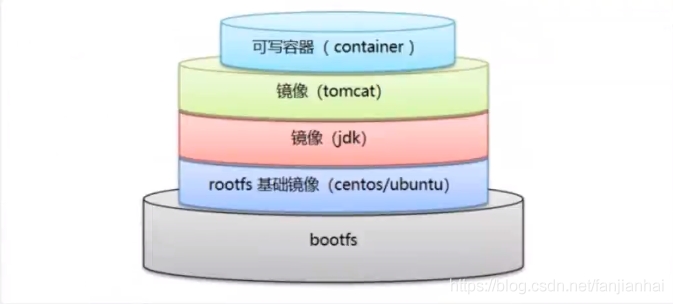

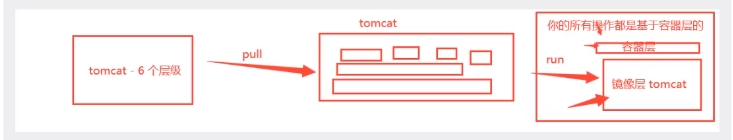

bf5952930446: Pull complete # 分层下载，dockerimages的核心，联合文件系统
8254623a9871: Pull complete
938e3e06dac4: Pull complete
ea28ebf28884: Pull complete
f3cef38785c2: Pull complete
894f9792565a: Pull complete
1d8a57523420: Pull complete
6c676912929f: Pull complete
ff39fdb566b4: Pull complete
fff872988aba: Pull complete
4d34e365ae68: Pull complete
7886ee20621e: Pull complete
Digest: sha256:c358e72e100ab493a0304bda35e6f239db2ec8c9bb836d8a427ac34307d074ed # 签名
Status: Downloaded newer image for mysql:latest
docker.io/library/mysql:latest # 真实地址
# 等价于
docker pull mysql
docker pull docker.io/library/mysql:latest
# 指定版本下载
[root@iZ2zeg4ytp0whqtmxbsqiiZ ~]# docker pull mysql:5.7
5.7: Pulling from library/mysql
bf5952930446: Already exists
8254623a9871: Already exists
938e3e06dac4: Already exists
ea28ebf28884: Already exists
f3cef38785c2: Already exists
894f9792565a: Already exists
1d8a57523420: Already exists
5f09bf1d31c1: Pull complete
1b6ff254abe7: Pull complete
74310a0bf42d: Pull complete
d398726627fd: Pull complete
Digest: sha256:da58f943b94721d46e87d5de208dc07302a8b13e638cd1d24285d222376d6d84
Status: Downloaded newer image for mysql:5.7
docker.io/library/mysql:5.7
# 查看本地镜像
[root@iZ2zeg4ytp0whqtmxbsqiiZ ~]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
mysql 5.7 718a6da099d8 6 days ago 448MB
mysql latest 0d64f46acfd1 6 days ago 544MB
hello-world latest bf756fb1ae65 7 months ago 13.3kB

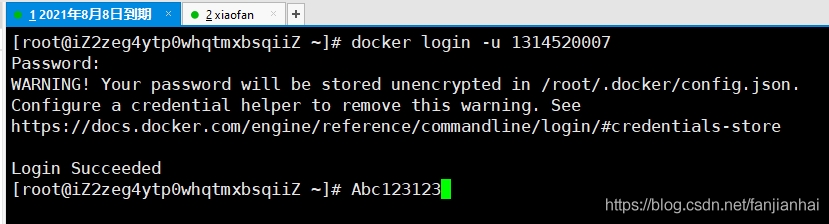

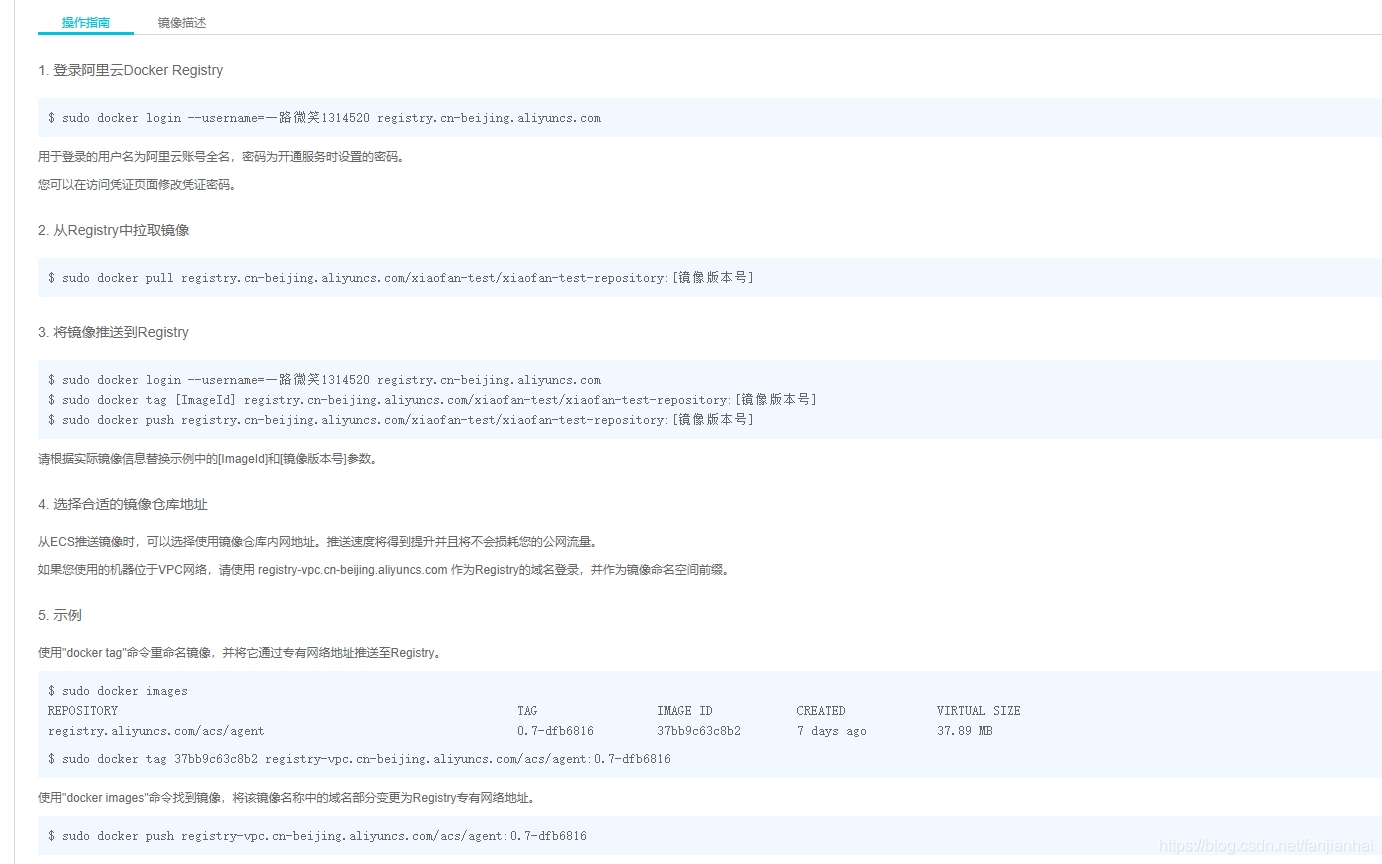

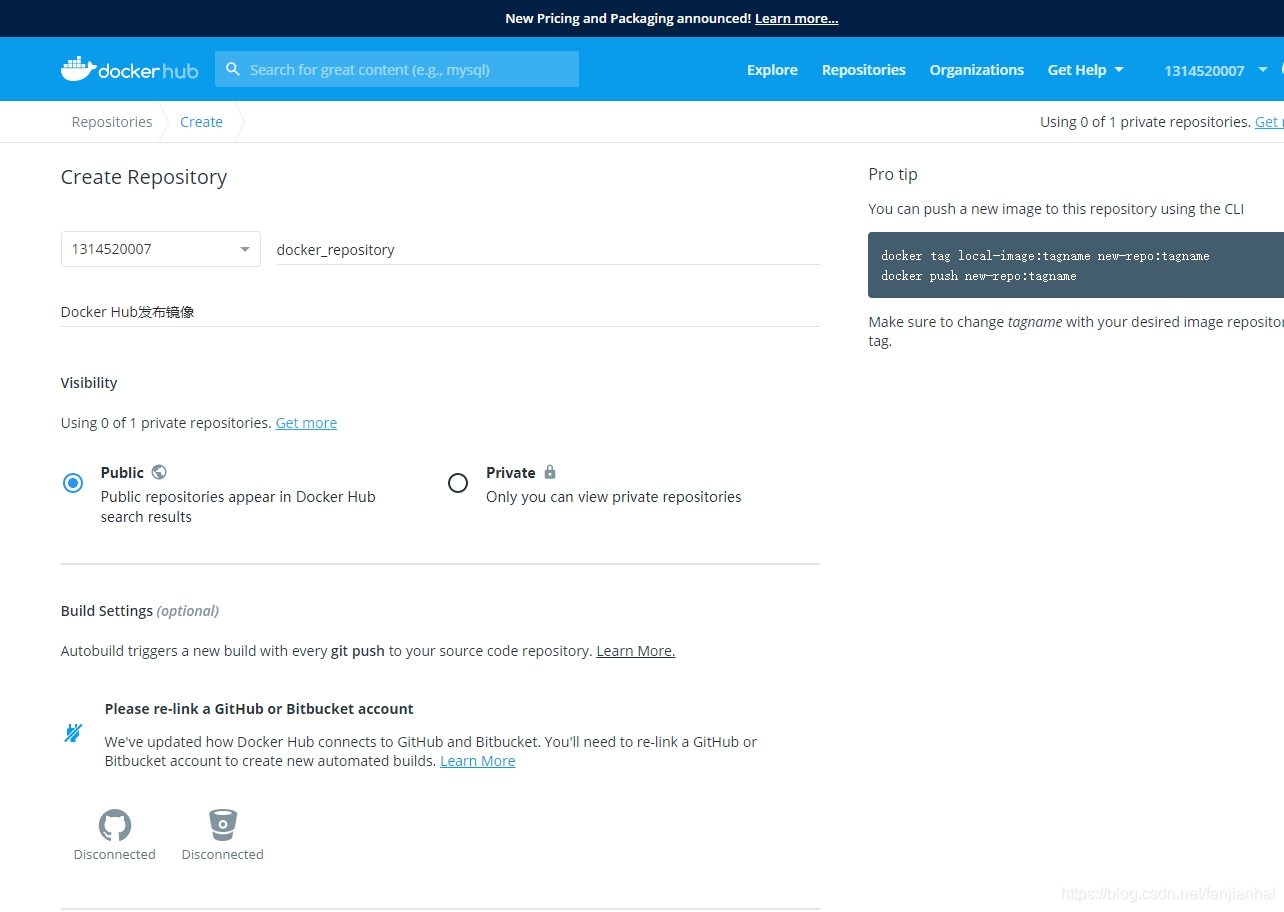

# push到我们的服务器上
[root@iZ2zeg4ytp0whqtmxbsqiiZ ~]# docker push diytomcat
The push refers to repository [docker.io/library/diytomcat]
2eaca873a720: Preparing
1b38cc4085a8: Preparing
088ebb58d264: Preparing
c06785a2723d: Preparing
291f6e44771a: Preparing
denied: requested access to the resource is denied # 拒绝

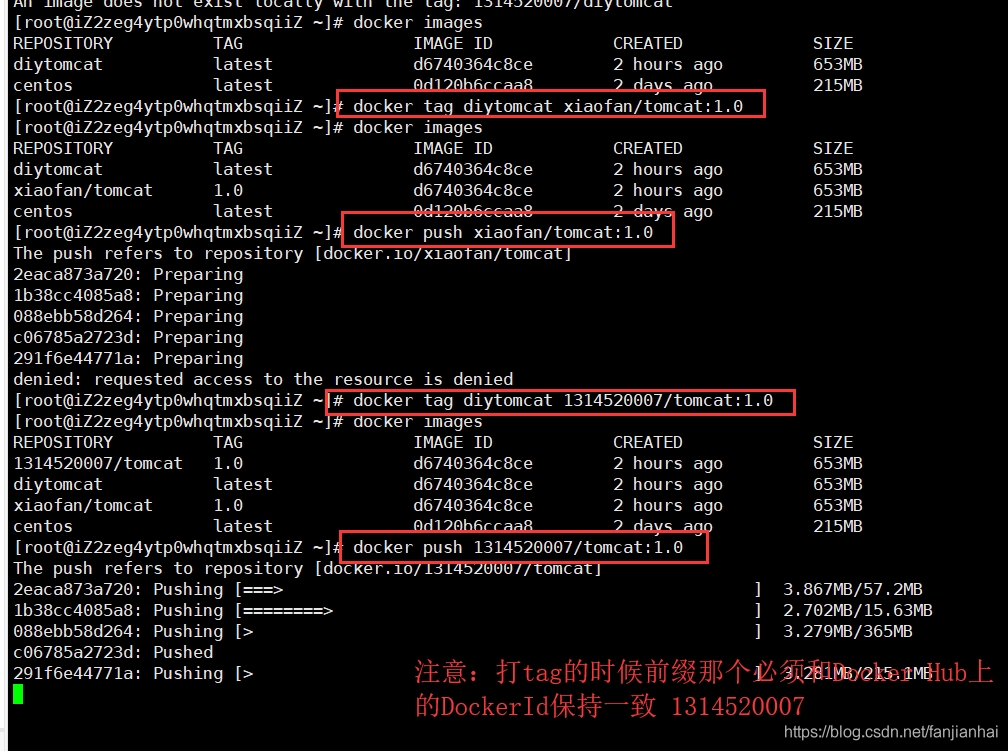

# push镜像的问题？
The push refers to repository [docker.io/1314520007/diytomcat]
An image does not exist locally with the tag: 1314520007/diytomcat
# 解决，增加一个tag
docker tag diytomcat 1314520007/tomcat:1.0

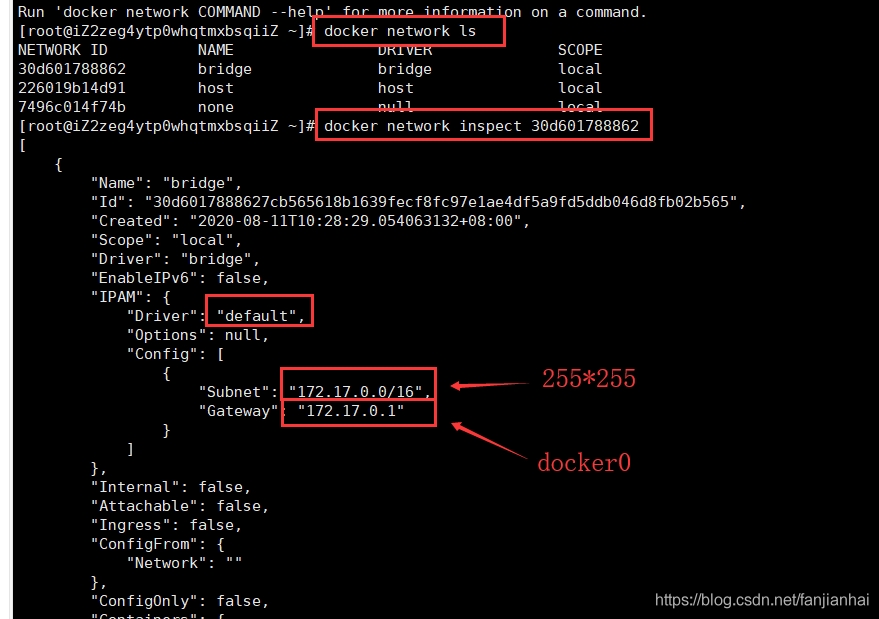

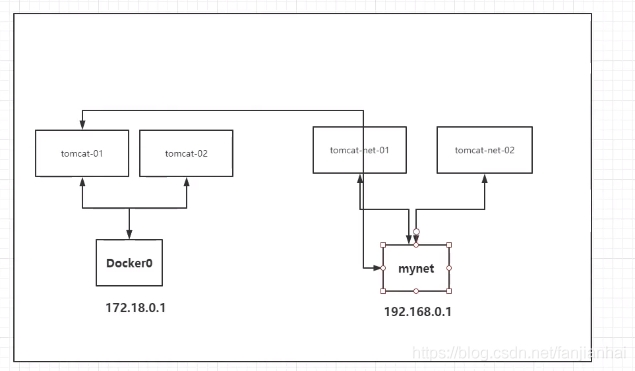

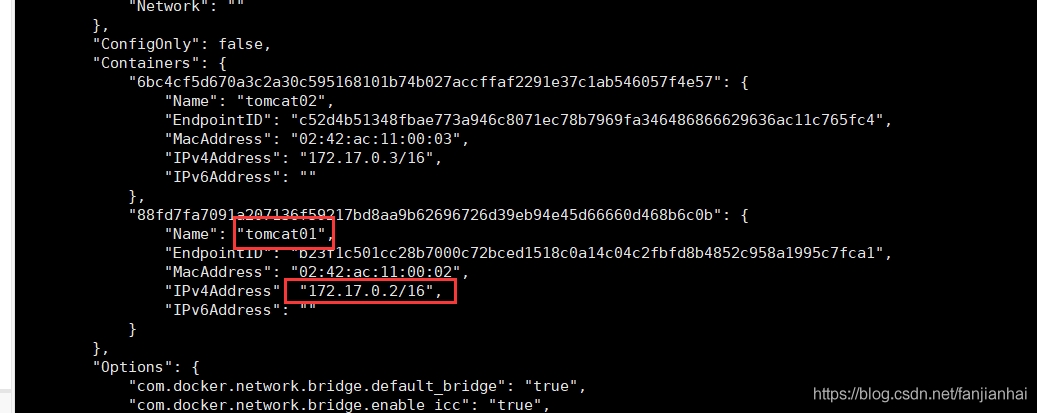

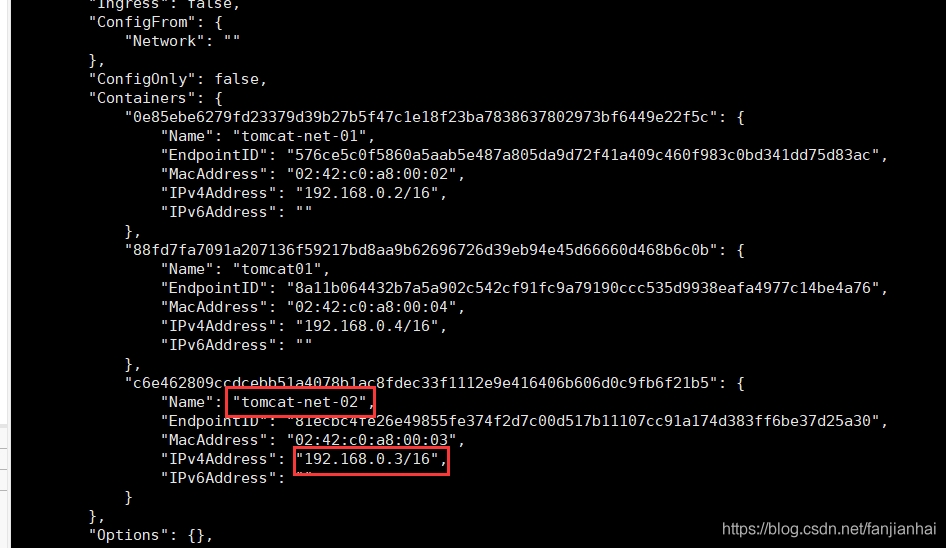

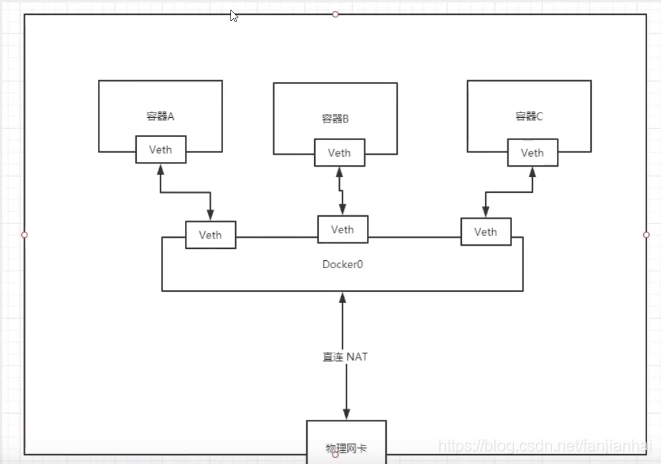

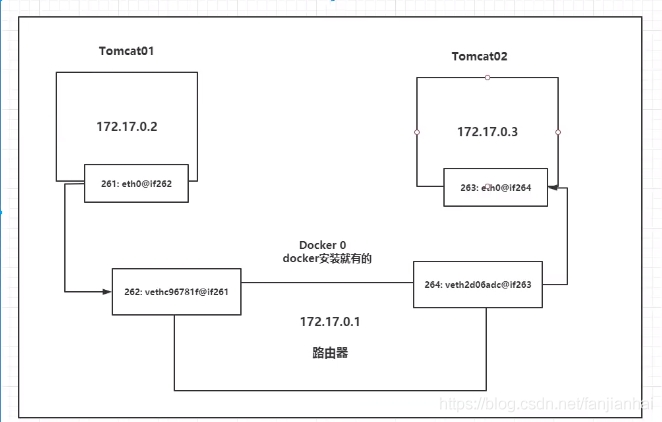

# 问题： docker是如何处理容器网络访问的？
# [root@iZ2zeg4ytp0whqtmxbsqiiZ ~]# docker run -d -P --name tomcat01 tomcat

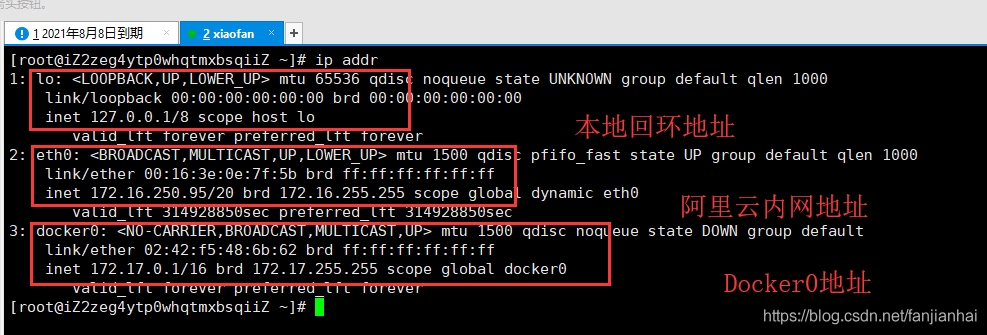

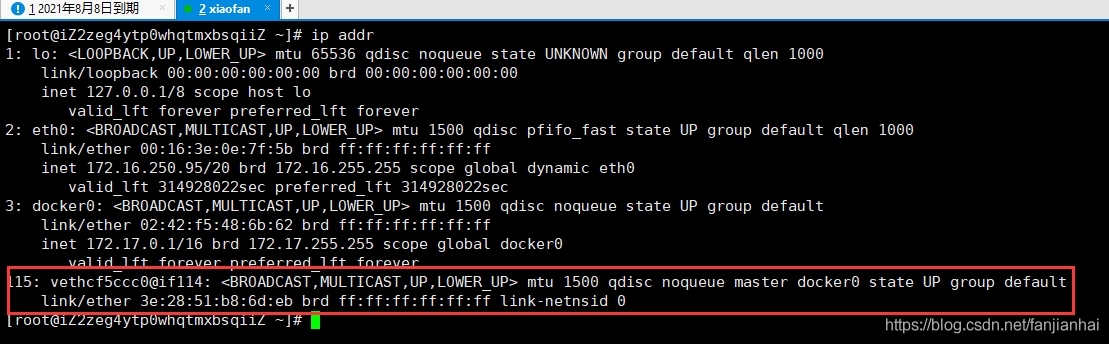

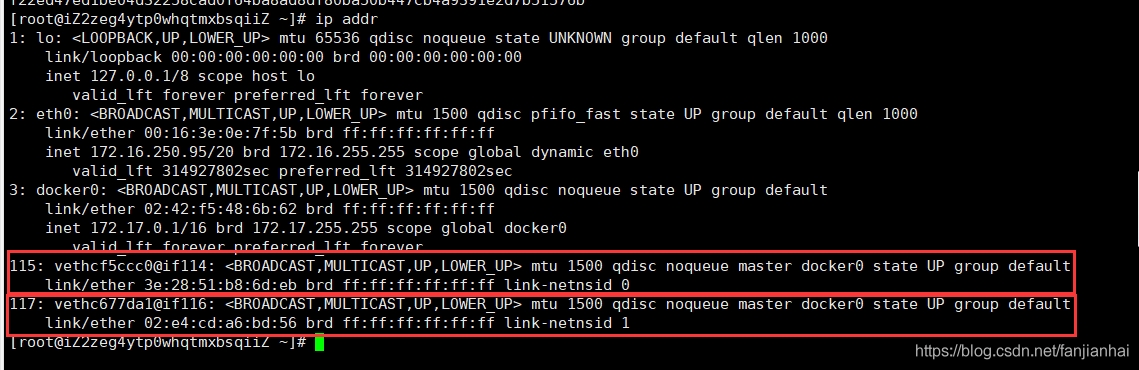

# 查看容器内部的网络地址 ip addr
[root@iZ2zeg4ytp0whqtmxbsqiiZ ~]# docker exec -it tomcat01 ip addr， 发现容器启动的时候得到一个eth0@if115 ip地址，docker分配的！
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
114: eth0@if115: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
link/ether 02:42:ac:11:00:02 brd ff:ff:ff:ff:ff:ff link-netnsid 0
inet 172.17.0.2/16 brd 172.17.255.255 scope global eth0
valid_lft forever preferred_lft forever

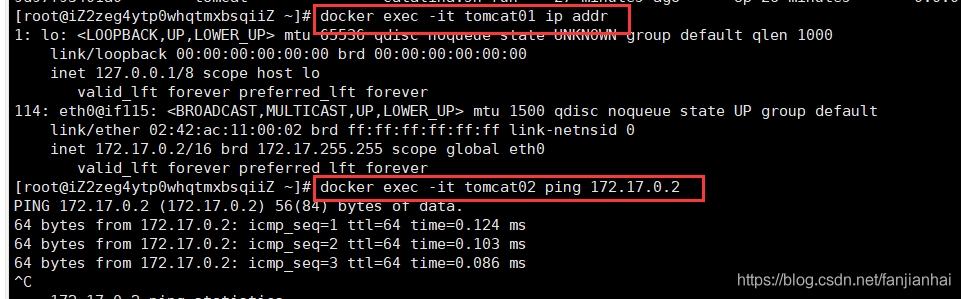

# 思考： linux 能不能ping通容器？
[root@iZ2zeg4ytp0whqtmxbsqiiZ ~]# ping 172.17.0.2
PING 172.17.0.2 (172.17.0.2) 56(84) bytes of data.
64 bytes from 172.17.0.2: icmp_seq=1 ttl=64 time=0.077 ms
64 bytes from 172.17.0.2: icmp_seq=2 ttl=64 time=0.069 ms
64 bytes from 172.17.0.2: icmp_seq=3 ttl=64 time=0.075 ms
# linux 可以 ping 通docker容器内部！
[root@iZ2zeg4ytp0whqtmxbsqiiZ ~]# docker exec -it tomcat02 ping tomcat01
ping: tomcat01: Name or service not known
# 如何可以解决呢？
# 通过--link既可以解决网络连通问题

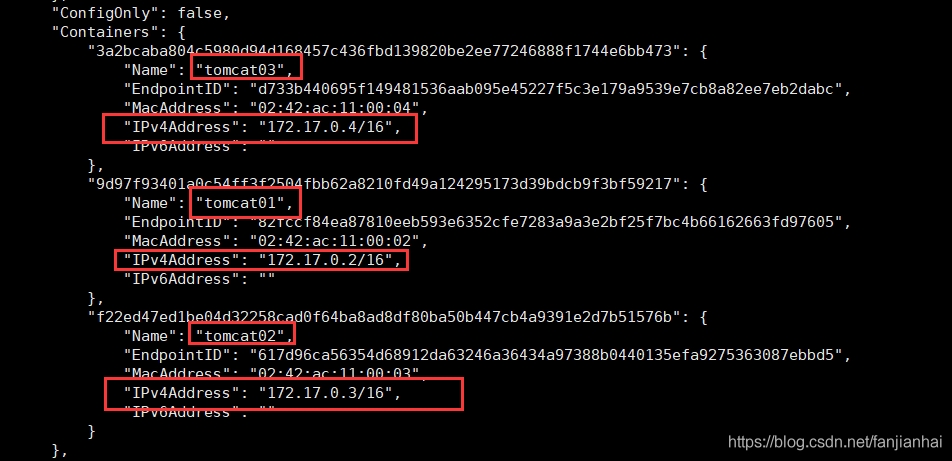

[root@iZ2zeg4ytp0whqtmxbsqiiZ ~]# docker run -d -P --name tomcat03 --link tomcat02 tomcat
3a2bcaba804c5980d94d168457c436fbd139820be2ee77246888f1744e6bb473
[root@iZ2zeg4ytp0whqtmxbsqiiZ ~]# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
3a2bcaba804c tomcat "catalina.sh run" 4 seconds ago Up 3 seconds 0.0.0.0:32772->8080/tcp tomcat03
f22ed47ed1be tomcat "catalina.sh run" 57 minutes ago Up 57 minutes 0.0.0.0:32771->8080/tcp tomcat02
9d97f93401a0 tomcat "catalina.sh run" About an hour ago Up About an hour 0.0.0.0:32770->8080/tcp tomcat01
[root@iZ2zeg4ytp0whqtmxbsqiiZ ~]# docker exec -it tomcat03 ping tomcat02
PING tomcat02 (172.17.0.3) 56(84) bytes of data.
64 bytes from tomcat02 (172.17.0.3): icmp_seq=1 ttl=64 time=0.129 ms
64 bytes from tomcat02 (172.17.0.3): icmp_seq=2 ttl=64 time=0.100 ms
64 bytes from tomcat02 (172.17.0.3): icmp_seq=3 ttl=64 time=0.110 ms
64 bytes from tomcat02 (172.17.0.3): icmp_seq=4 ttl=64 time=0.107 ms
# 反向可以ping通吗？
[root@iZ2zeg4ytp0whqtmxbsqiiZ ~]# docker exec -it tomcat02 ping tomcat03
ping: tomcat03: Name or service not known

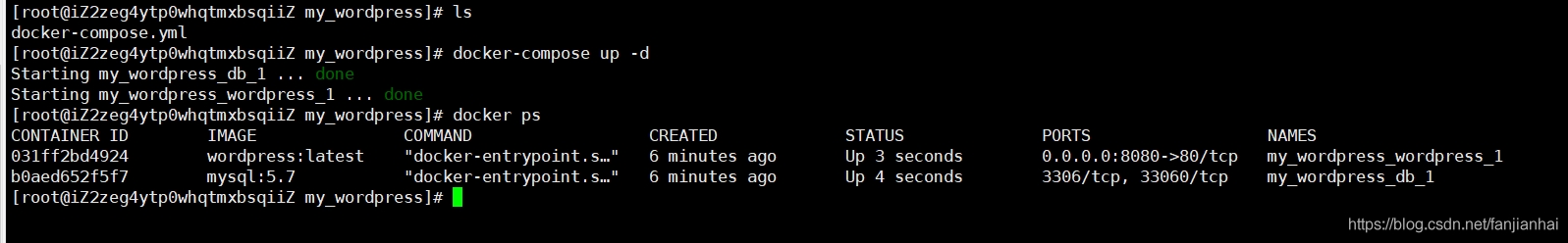

docker-compose down # 关闭容器

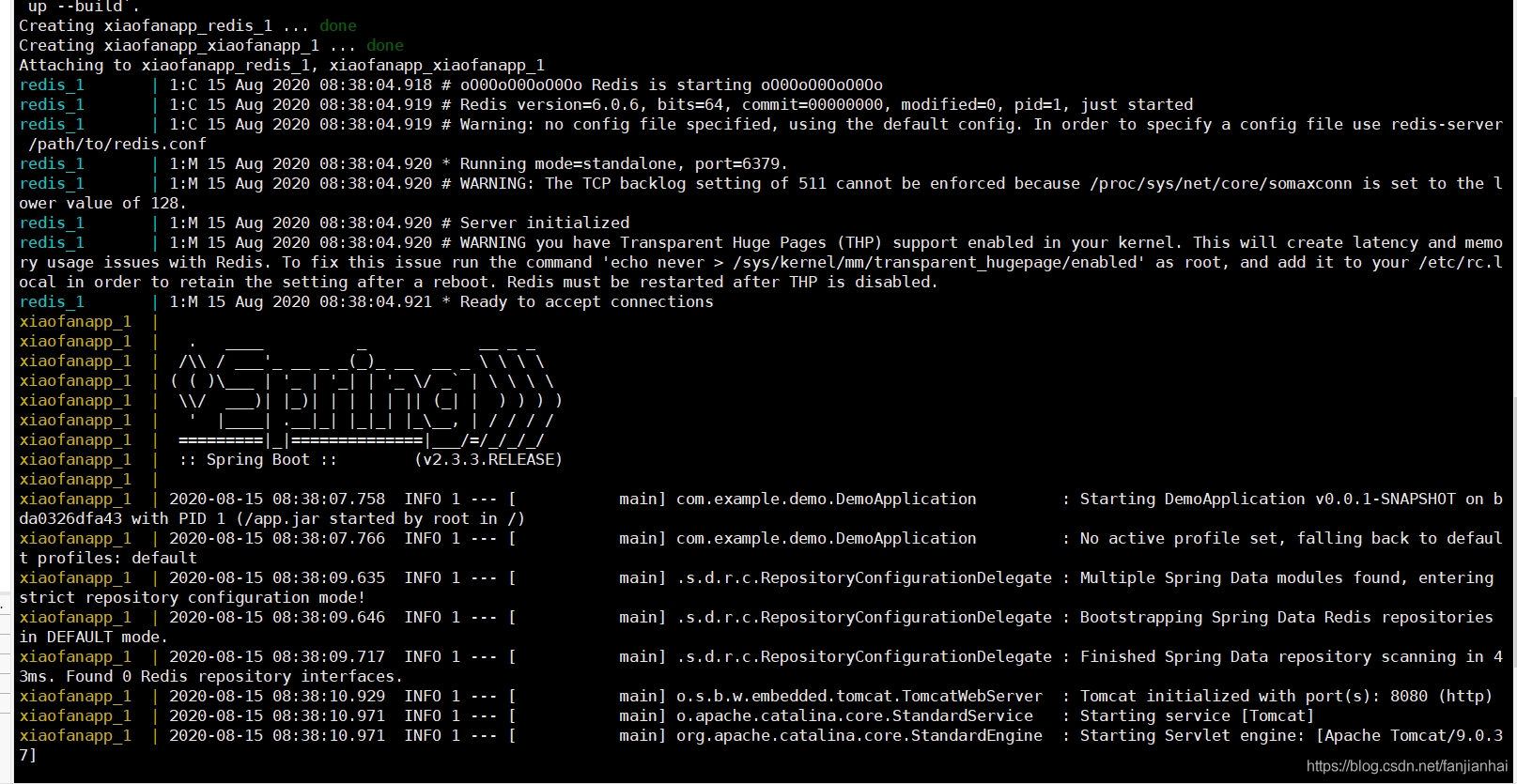

docker-compose up --build # 重新构建

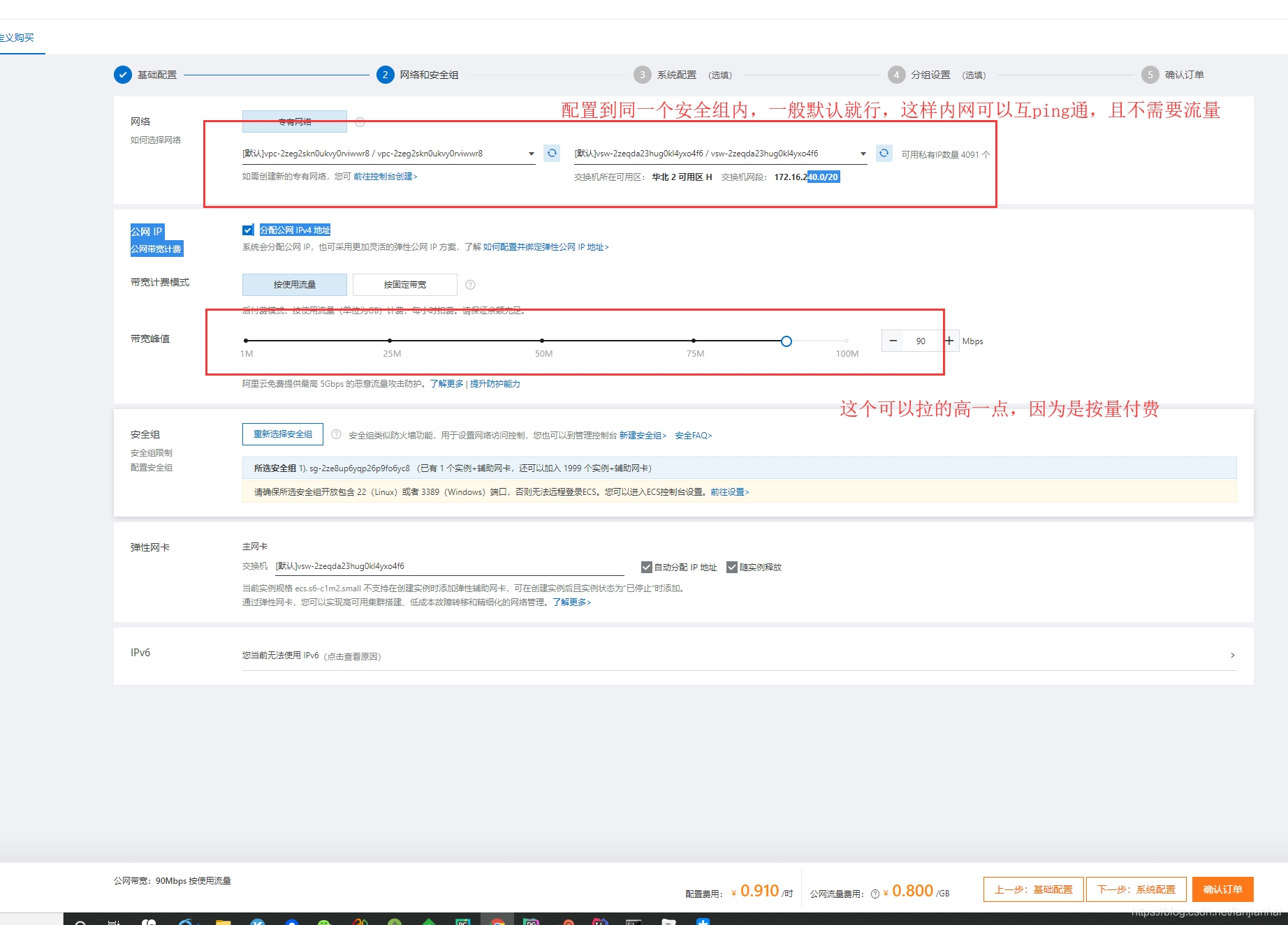

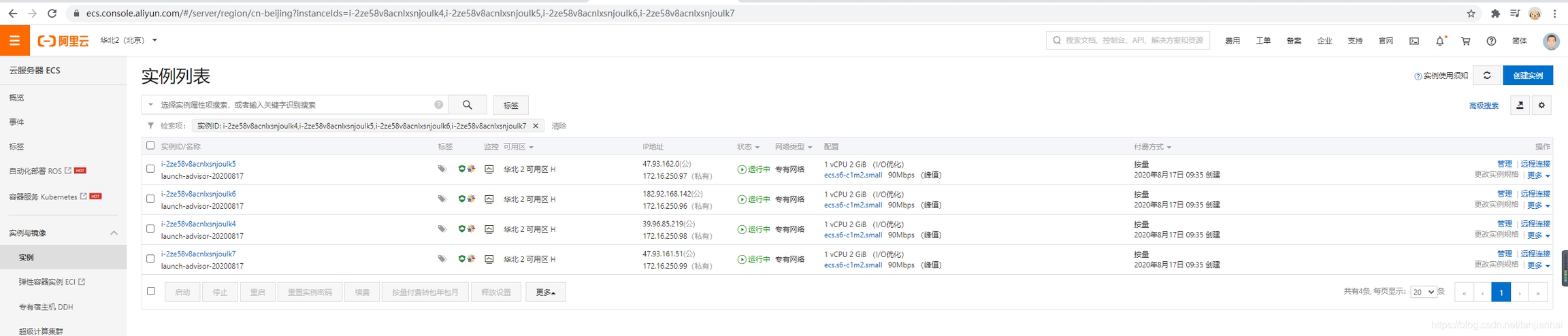

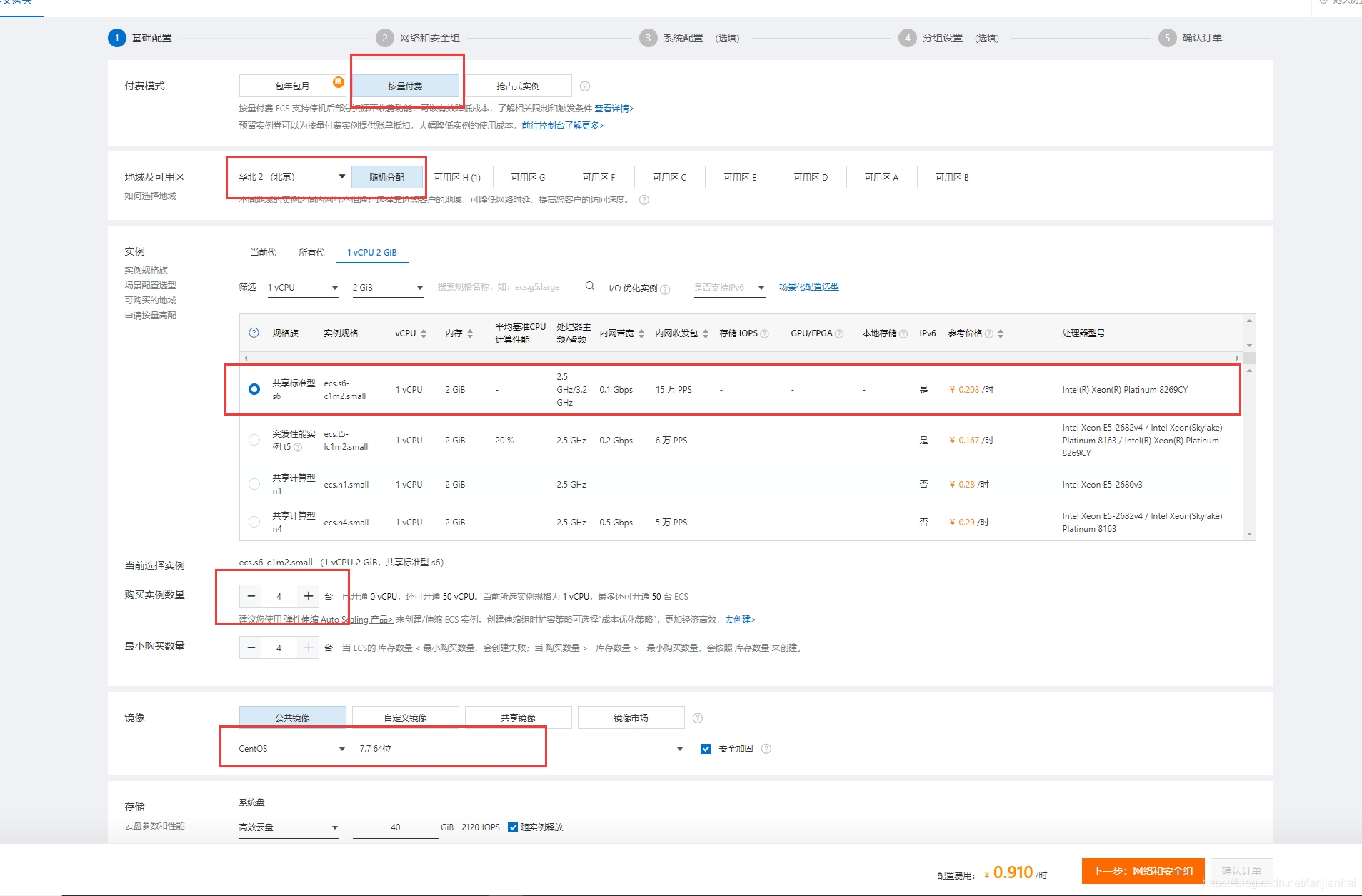

4台服务器2G

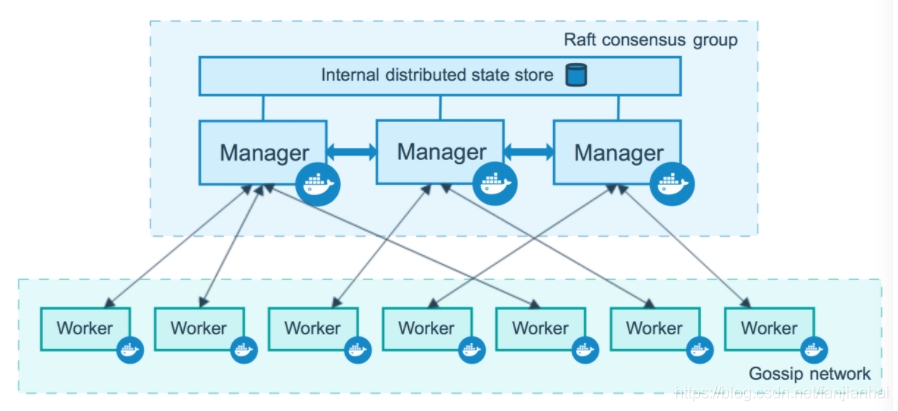

docker swarm init --help
ip addr # 获取自己的ip（用内网的不要流量）

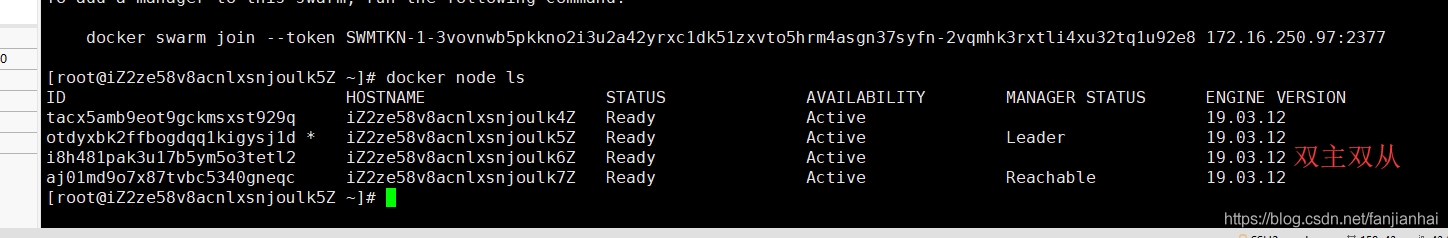

[root@iZ2ze58v8acnlxsnjoulk5Z ~]# docker swarm init --advertise-addr 172.16.250.97
Swarm initialized: current node (otdyxbk2ffbogdqq1kigysj1d) is now a manager.
To add a worker to this swarm, run the following command:
docker swarm join --token SWMTKN-1-3vovnwb5pkkno2i3u2a42yrxc1dk51zxvto5hrm4asgn37syfn-0xkrprkuyyhrx7cidg381pdir 172.16.250.97:2377
To add a manager to this swarm, run 'docker swarm join-token manager' and follow the instructions.
# 获取令牌
docker swarm join-token manager
docker swarm join-token worker
[root@iZ2ze58v8acnlxsnjoulk6Z ~]# docker swarm join --token SWMTKN-1-3vovnwb5pkkno2i3u2a42yrxc1dk51zxvto5hrm4asgn37syfn-0xkrprkuyyhrx7cidg381pdir 172.16.250.97:2377
This node joined a swarm as a worker.

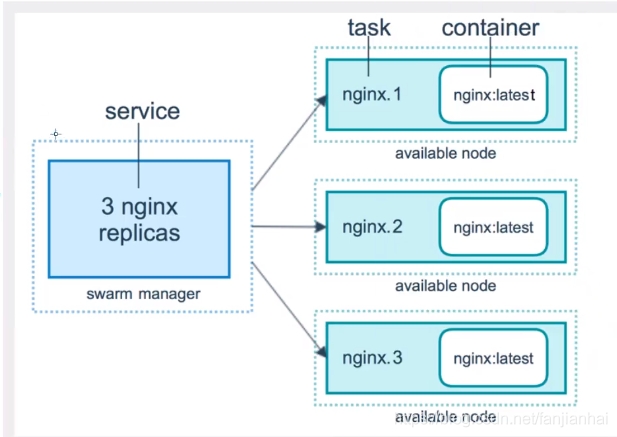

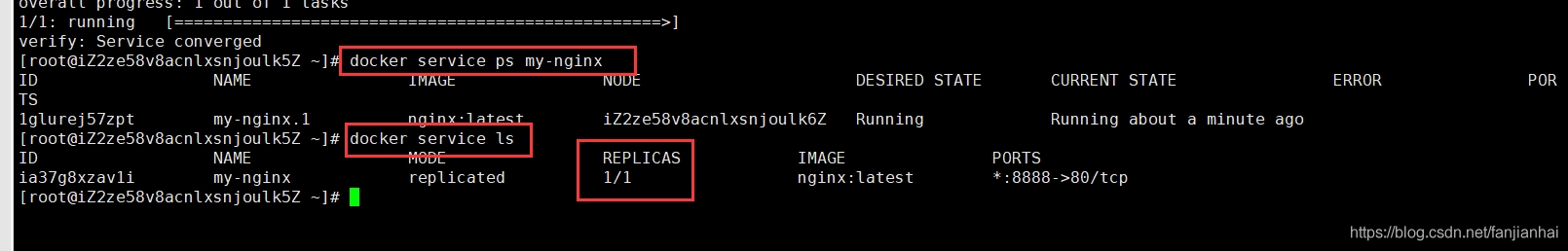

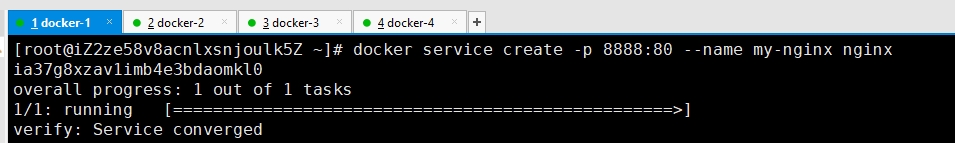

docker run 容器启动！ 不具有扩缩容器

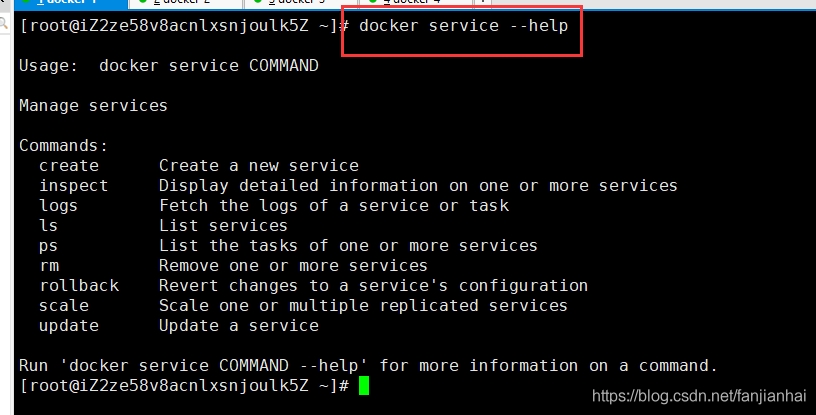

docker service 服务！ 具有扩缩容器，滚动更新！
[root@iZ2ze58v8acnlxsnjoulk5Z ~]# docker service update --replicas 3 my-nginx
1/3: running [==================================================>]
1/3: running [==================================================>]
2/3: running [==================================================>]
3/3: running [==================================================>]
verify: Service converged
[root@iZ2ze58v8acnlxsnjoulk5Z ~]# docker service scale my-nginx=5
my-nginx scaled to 5
overall progress: 3 out of 5 tasks
overall progress: 3 out of 5 tasks
overall progress: 3 out of 5 tasks
overall progress: 5 out of 5 tasks
1/5: running [==================================================>]
2/5: running [==================================================>]
3/5: running [==================================================>]
4/5: running [==================================================>]
5/5: running [==================================================>]
verify: Service converged
[root@iZ2ze58v8acnlxsnjoulk5Z ~]# docker service scale my-nginx=1
my-nginx scaled to 1
overall progress: 1 out of 1 tasks
1/1: running [==================================================>]
verify: Service converged

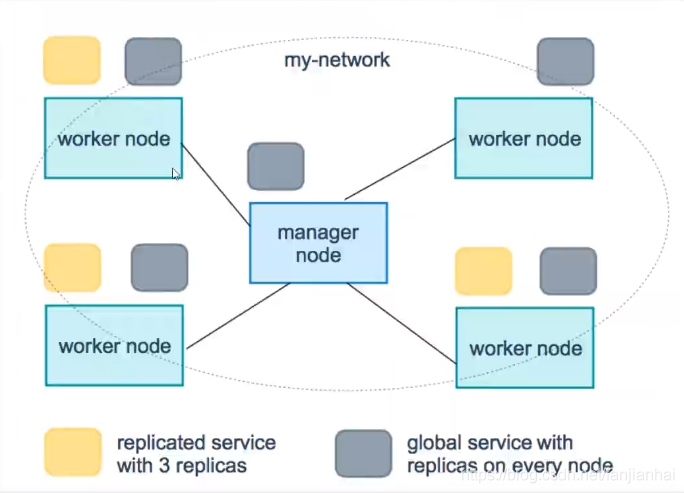

--mode string
Service mode (replicated or global) (default "replicated")
docker service create --mode replicated --name mytom tomcat:7 默认的
docker service create --mode global --name haha alpine ping www.baidu.com
安全！配置密码！证书！
[root@iZ2ze58v8acnlxsnjoulk5Z ~]# docker secret --help
Usage: docker secret COMMAND
Manage Docker secrets
Commands:
create Create a secret from a file or STDIN as content
inspect Display detailed information on one or more secrets
ls List secrets
rm Remove one or more secrets
配置！
[root@iZ2ze58v8acnlxsnjoulk5Z ~]# docker config --help
Usage: docker config COMMAND
Manage Docker configs
Commands:
create Create a config from a file or STDIN
inspect Display detailed information on one or more configs
ls List configs
rm Remove one or more configs
